Benchmark results

Khone trades a small amount of gateway latency for fewer target Lambda invocations. Read the public snapshot in that frame: steady, adaptive, and target-aware batching are useful when batching reduces enough downstream work to justify the extra hop.

The public runs used 256 MB target Lambdas, an LMI capacity provider configured with m8g instances, and four warm gateway execution environments during the final pass. Round 2 is shown because it reduces first-round scale and empty-state effects.

This is an I/O-bound scenario. Each target Lambda calls the same benchmark backend Lambda URL, and that backend sleeps before returning JSON. The backend delay is part of the scenario, not the k6 max-delay query value.

Scenario metadata

Setting	Value
Target function memory	`256 MB`
Target architecture	`arm64`
Gateway capacity provider	LMI provider configured with `m8g` instances
Gateway function memory	`2048 MB`
Gateway LMI capacity	`4/4` execution environments, `64` concurrent requests per environment, `2.0 GiB/vCPU`
Backend workload	Target Lambdas call a backend Lambda URL that simulates delayed downstream responses
Backend delay model	`80 ms` base delay plus up to `80 ms` item-key-seeded jitter (`80-160 ms`)
Backend work points	`48`
Backend timeout	`7000 ms`
Khone target concurrency	`16`
Gateway scaling for final pass	minimum `4` execution environments
Low traffic profile	5m at 1 rps, then 5m ramping 1 to 10 rps, then 5m ramping 10 to 50 rps
High traffic profile	3m ramping 0 to 50 rps, then 3m ramping 50 to 100 rps, then 3m ramping 100 to 150 rps
Error rate in round 2 summaries	Low traffic: `0.000%` for all endpoints. High traffic: steady and target-aware had `0.000%`; adaptive and standard each recorded 1 error out of 40,499 requests.

Cost summary

Estimated target invocation cost by endpoint, normalized to the standard endpoint

The cost bars are normalized to the standard endpoint at 100%. In this benchmark, target-aware batching had the lowest estimated target invocation cost, especially at higher traffic.

Traffic profile	Endpoint	P95 latency	Estimated target cost
Low, 1/10/50 rps	steady	317 ms	65.4%
Low, 1/10/50 rps	adaptive	283 ms	85.1%
Low, 1/10/50 rps	target-aware	463 ms	45.1%
Low, 1/10/50 rps	standard	198 ms	100.0%
High, 50/100/150 rps	steady	308 ms	32.4%
High, 50/100/150 rps	adaptive	304 ms	36.2%
High, 50/100/150 rps	target-aware	464 ms	17.7%
High, 50/100/150 rps	standard	197 ms	100.0%

Latency summary

P95 latency by endpoint for low and high traffic profiles

The standard endpoint was fastest in these runs because it avoids the Khone gateway hop and batching wait. Target-aware batching intentionally waits longer when it expects batching to improve cost efficiency, so it has the highest latency in exchange for the lowest estimated target invocation cost.

Traffic profile	steady P95	adaptive P95	target-aware P95	standard P95
Low, 1/10/50 rps	317 ms	283 ms	463 ms	198 ms
High, 50/100/150 rps	308 ms	304 ms	464 ms	197 ms

Report charts

These generated charts show sampled latency over time, per-stage cost bars, and heatmap summaries for each endpoint.

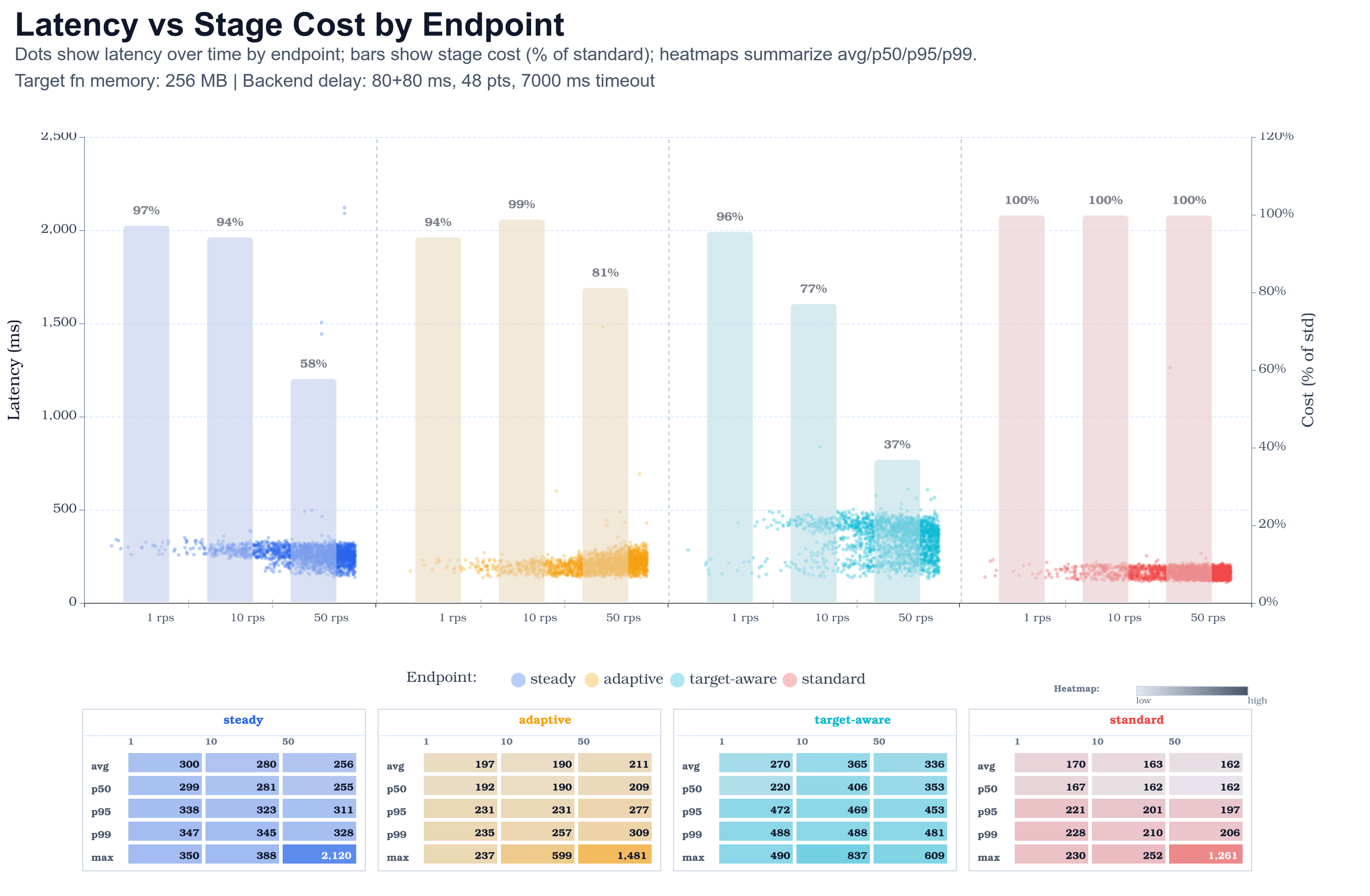

Low traffic, round 2

Low traffic benchmark latency distribution and stage cost by endpoint

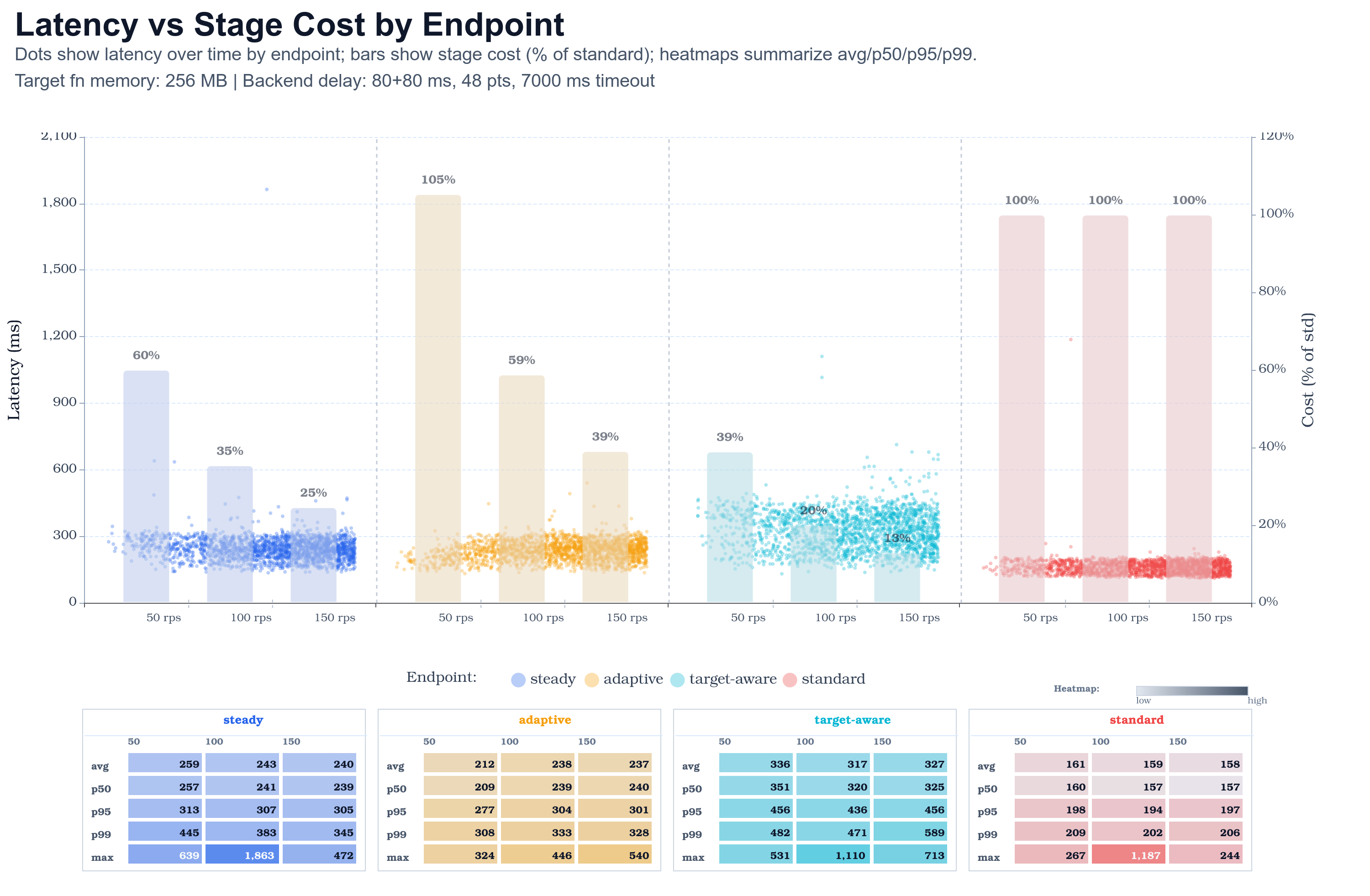

High traffic, round 2

High traffic benchmark latency distribution and stage cost by endpoint

Concurrency and cold starts

A second-order effect of batching: fewer concurrent target invocations means fewer execution environments, which means fewer cold starts. Spikes that would otherwise force Lambda to spin up new sandboxes can often be absorbed by the warm ones already handling batches.

This effect is workload-dependent and is not directly measured by the public benchmark. It largely disappears for routes that already run at steady high concurrency on a stable footprint. It also depends on the handler being able to make progress while items are waiting on I/O; pure CPU work usually needs more compute, not a larger batch.

What the estimate includes

The benchmark cost estimate focuses on target Lambda invocation work. It uses gateway-observed batch sizes and target response wait time instead of raw client HTTP duration, because client duration includes batching delay before the target function starts.

The estimate is still not a substitute for an AWS bill:

It does not include gateway LMI capacity cost.
It does not include Function URL, API Gateway, CloudWatch, data transfer, or VPC endpoint charges.
It does not use Lambda REPORT billed duration for every target invocation.
It is best used for relative scenario comparison, not absolute pricing.

Public report links

Read Benchmark methodology before comparing these numbers to another workload.
